产品名称 |
产品规格书 |
文件编号 |
版次 |
页码 |
|

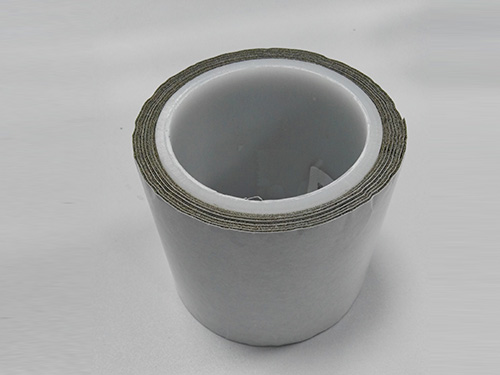

0.5全方位导电海棉 |
|
4-Q-工-03-A |
A0 |
1/1 |
1.1 本说明适用于本公司所生产的QK-DDHM050 各项质量要求。
(This description is produced in the company's QK-DDHM050 quality requirements.)
1.2 产品结构（product structure）
|
1 |
聚脂 海棉 Polyester sponge |
导电海棉(Conductive sponge) 导电胶（Conductive plastic） 无纺布(conductive tap) 导电胶(Conductive plastic) 离型纸(Release paper) |
|
2 |
金属铜 Cu |
|
|
3 |
金属镍 Ni |
|
|
4 |
涤纶纤维 PET |
|
|
4 |
亚克力胶 PMMA |
2.1产品名称 (Product Name): 0.3全方位导电海棉 (0.3 Full-Conductive sponge)
2.2产品参数(Product Parameter)
(The following income data are in the room temperature of 25℃, 40~60RH condition.)
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
粘性测试 |
|||||
|
产品名称 |
厚度（mm） |
初粘性（NO/BALL） |
剥离力（kg/inch） |
保持力（kg/inch） |
备注 |
|
|
FZ/T01003-1991 |
GB4852-1984 |
GB/T2792-1998 |
GB/T4851,CNS11888, |
|
|
QK-DDHM050 |
0.5 ± 0.015 |
2# |
≥0.8 |
≥24 h |
/ |
3.1 请在充分清除被贴物上的污迹，灰尘，油，水分等后再粘贴,避免反复粘贴。
(Please fully remove the paste on dirt, dust, oil, moisture and then paste, avoid repeated paste.)
3.2 胶带使用效果为出厂后的前 6 个月。(APdhesive tape using results for the first 6 months after the factory.)
3.3 如对本产品的用途有什么疑问，请向本公司咨询。(If have what doubt on the use of this product,please consult the company.)
3.4 上述产品在26℃，40~70RH 条件下存放，避免温湿差异过大对产品造成不良影响。
(The above products at a temperature of 26℃,stored under the conditions of 40~70RH,temperature and humidity difference is too large to avoid adverse effects on the product)
